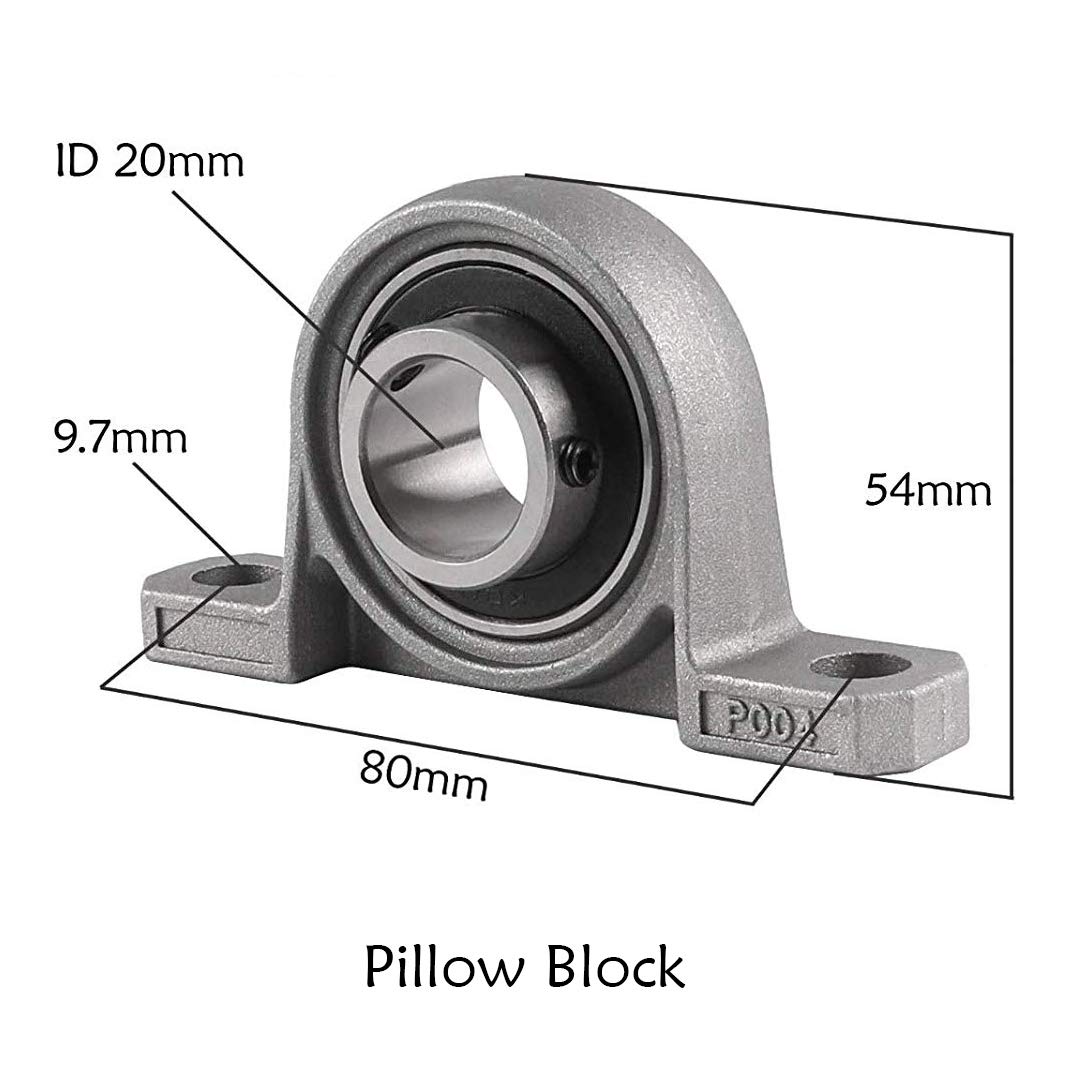

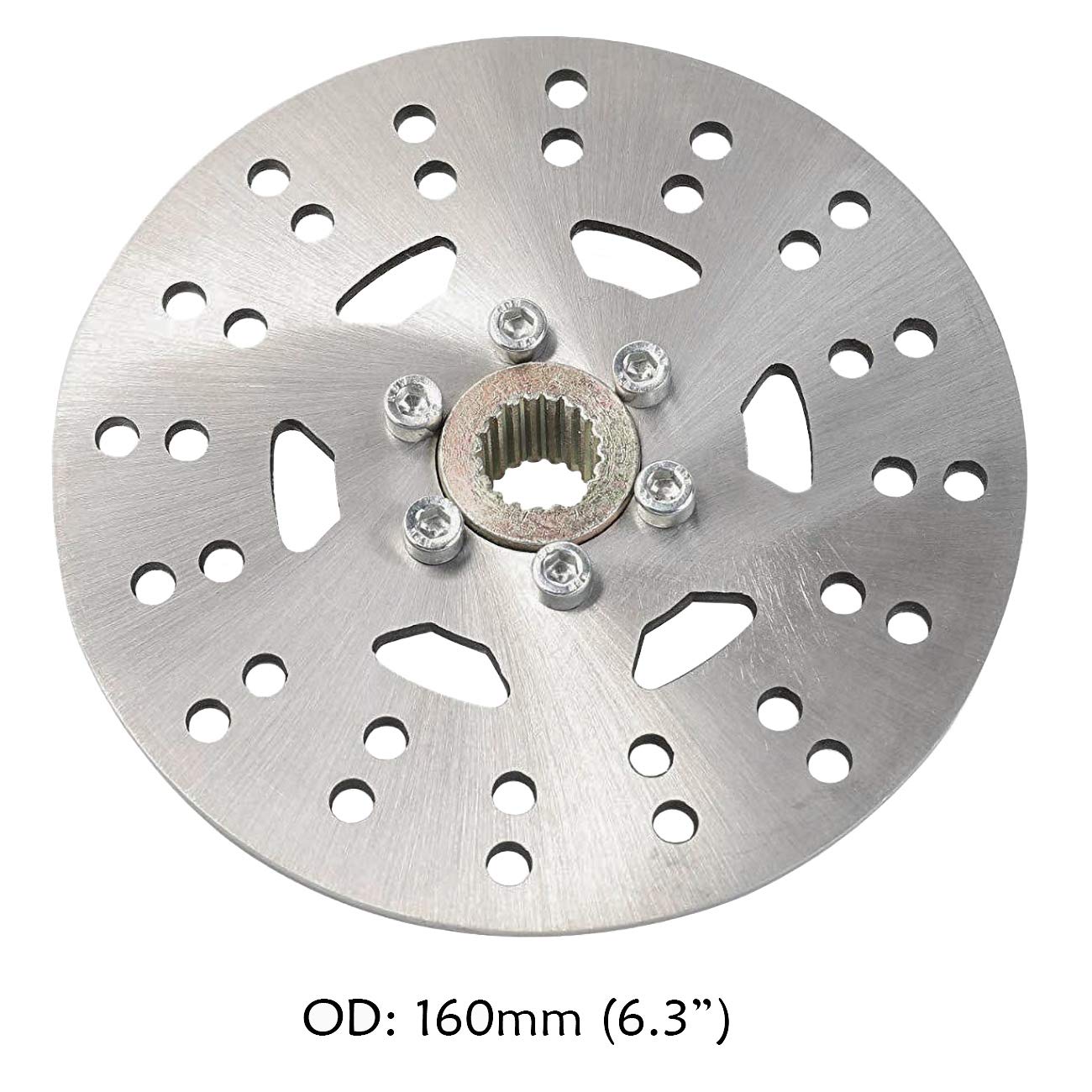

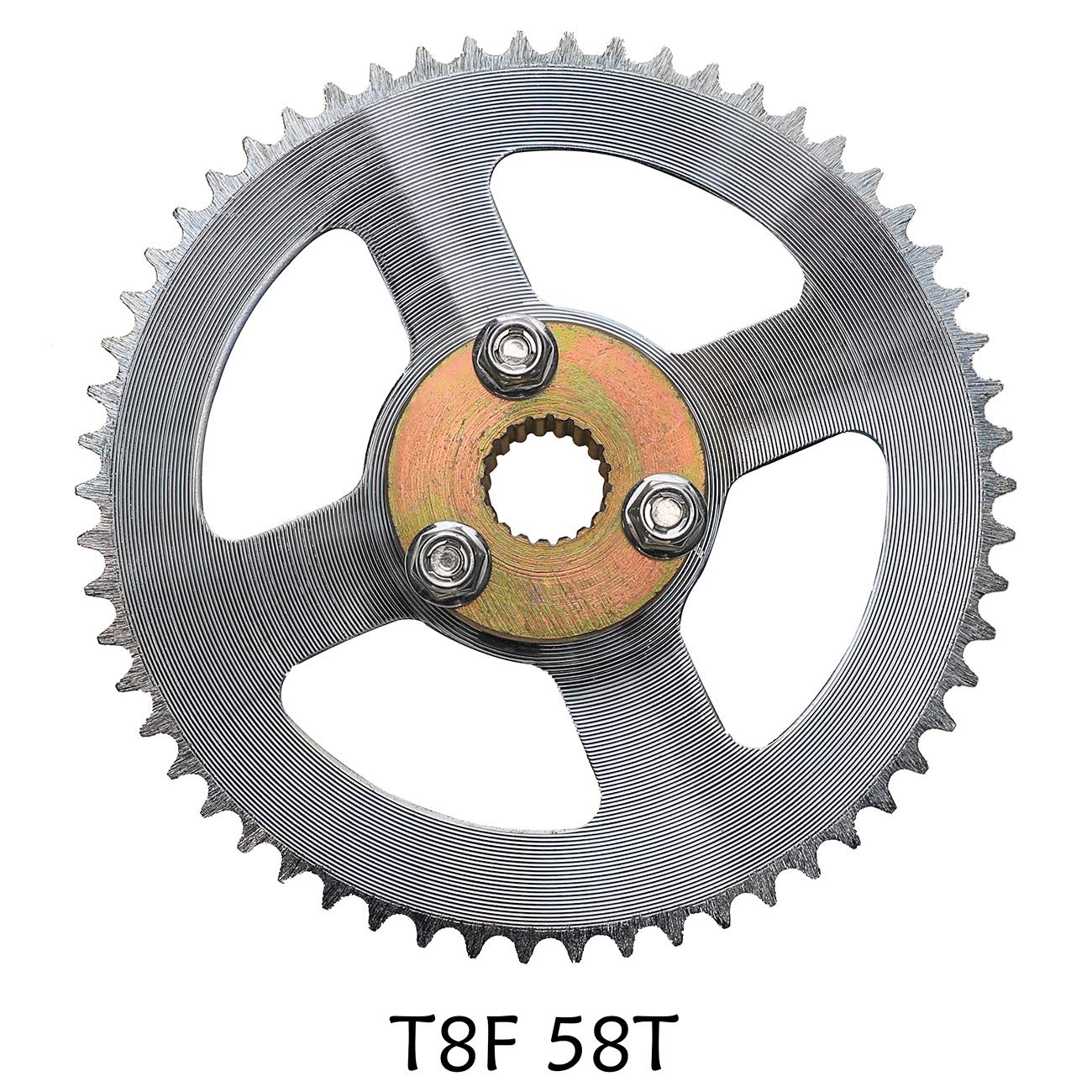

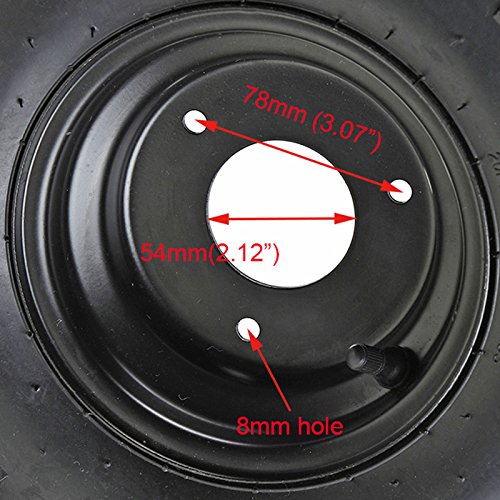

This is a high class and durable live axle kit for rebuild go kart quad or trikesThe axle fits 6 inch wheels (rim) with 3 bolt pattern and 3 inch bolt to bolt spacePackage includes (just as main image): (1) Axle Assembly, (2) Wheels (with tire, rim, tube), (1) T8F Sprocket, (1) Brake Disc, (2) Pillow BlockSpecs:Shaft Overall Length (from end to end): 740mm (29 1/8")The thickest part of the shaft is 22mm (7/8")Wheel spec: 12.59"(320mm) Tall & 4.33"(110mm) wide, come with 13x5.00-6 tire, 6" rim, and inner tubeChain and Sprocket: T8FBrake Disc Diameter: 160mm(6 1/4")Bearing model: 6904RSIf needed just contact seller for more detailed dimension and spec.The position of brake disc and sprocket can be changed, but the longer gold spacer bush should be along with sprocket, and the shorter one along with the brake side
This is a high class and durable live axle kit has almost all the rear-end parts you need
Perfect for DIY rebuild go kart quad, trikes or drift bikes

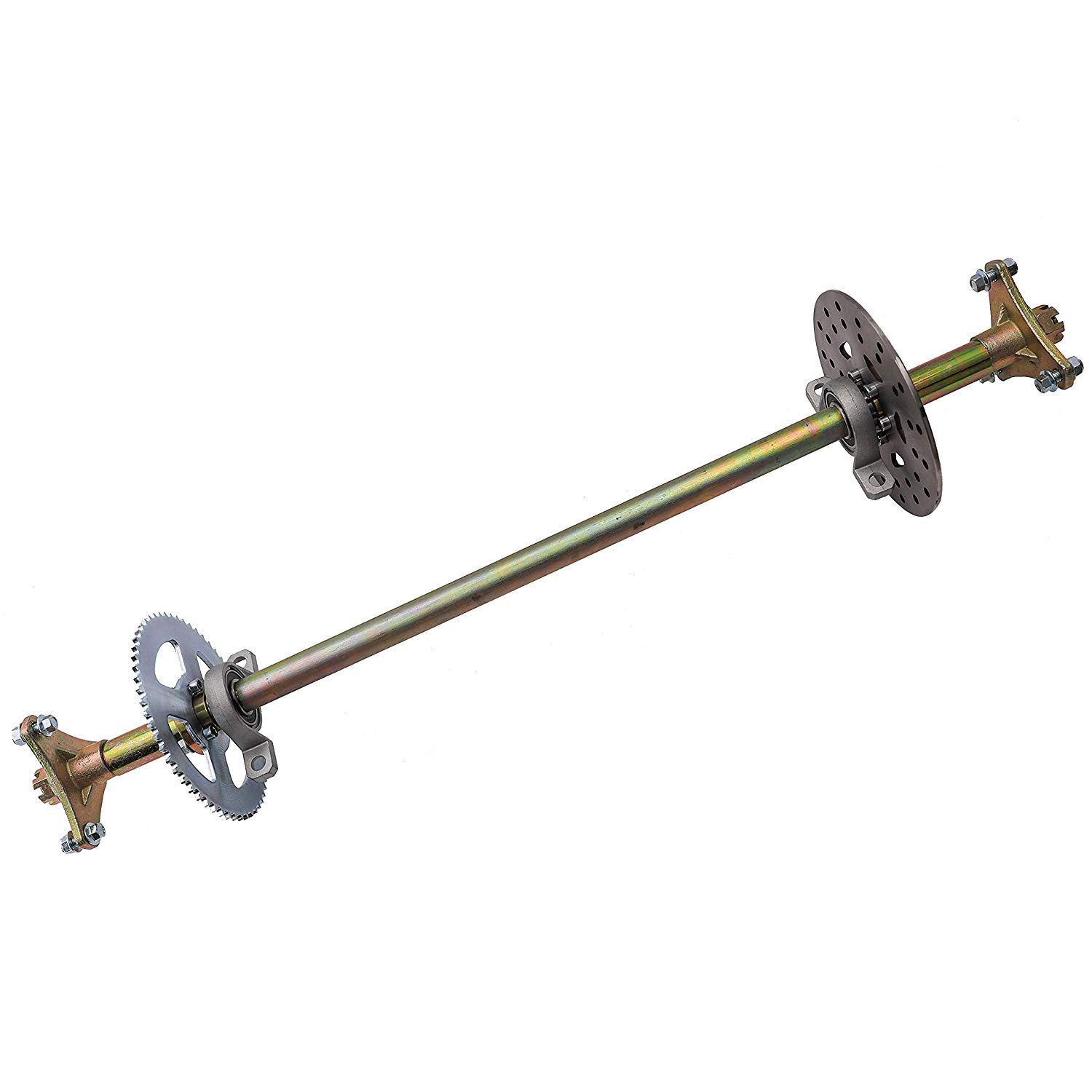

Shaft overall length 740mm (29 1/8 inch), the thickest part of the shaft is 22mm

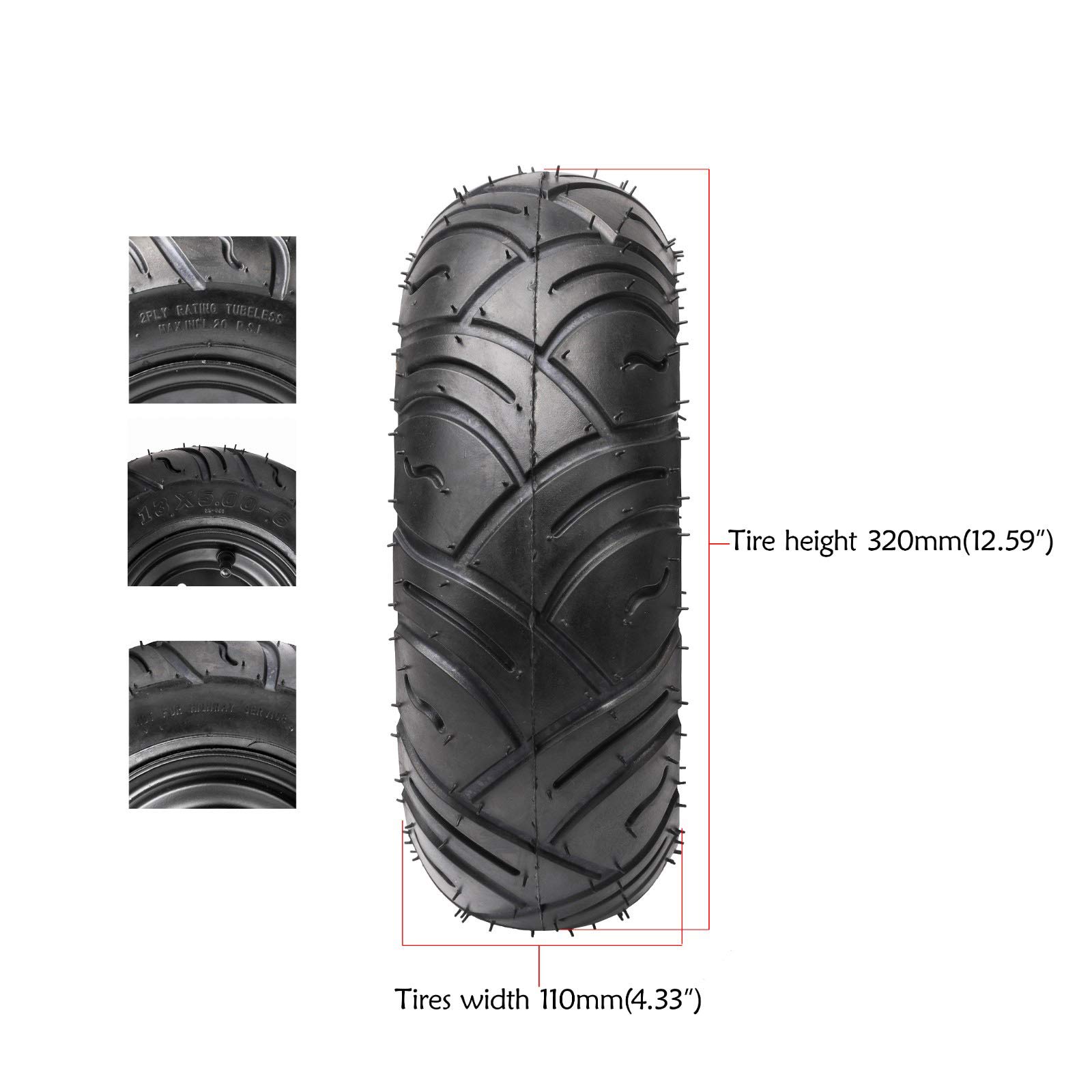

Wheel spec 12.59"(320mm) Tall & 4.33"(110mm) wide, come with 13x5.00-6 tire, 6" rim, and inner tube

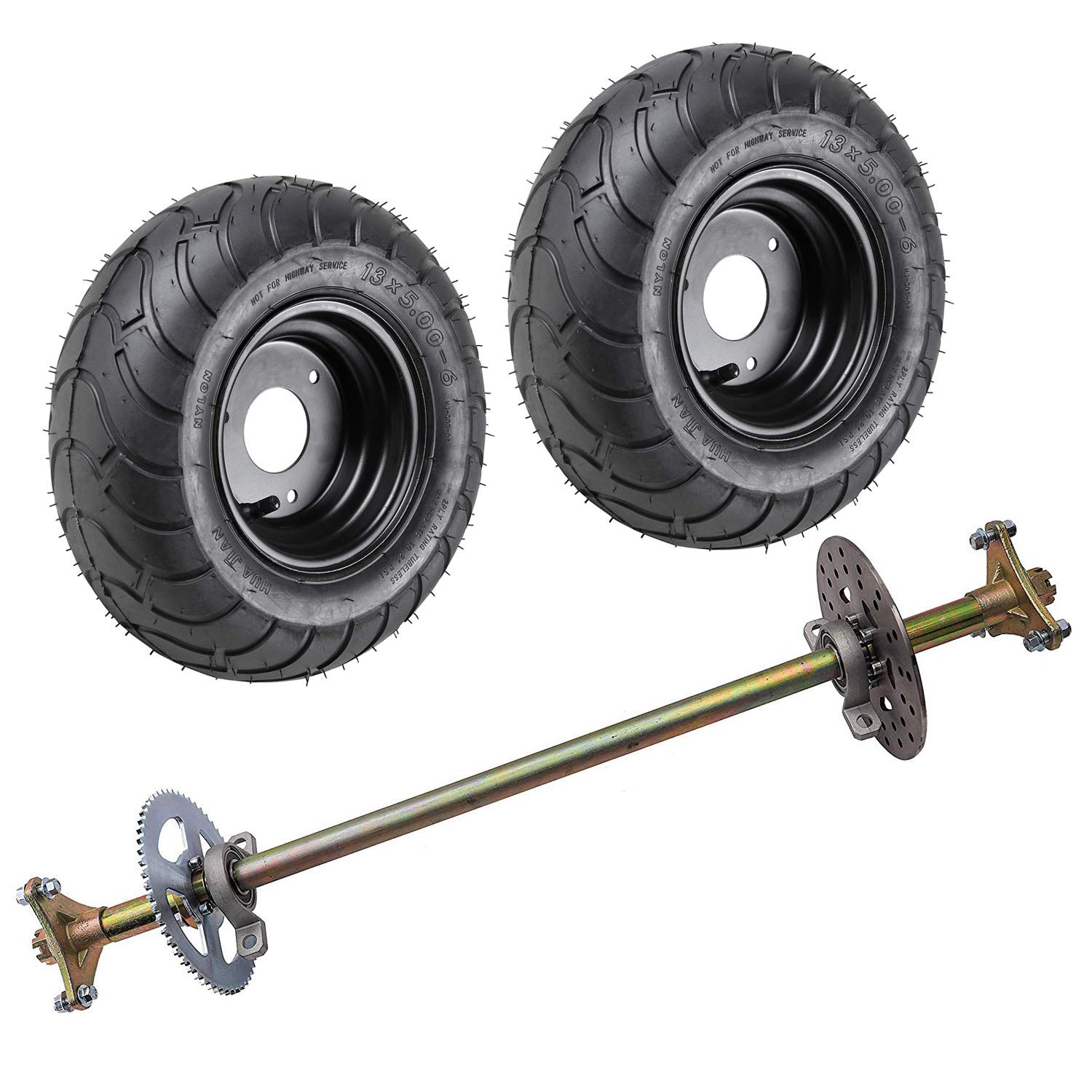

Package includes (1) Axle Assembly, (2) Wheels (with tire, rim, tube), (1) T8F Sprocket, (1) Brake Disc, (2) Pillow Block
